The primary difference between activated carbon and HEPA filters lies in their filtration mechanisms: HEPA filters utilize physical trapping mechanisms (interception, inertial impaction, and diffusion) to remove airborne solid particles and aerosols, whereas activated carbon filters rely on chemical adsorption to capture molecular-level gases, volatile organic compounds (VOCs), and odors.

This article examines the underlying science, materials, and configurations of activated carbon versus HEPA filtration. It features a comprehensive pollutant-matching table, outlines optimal installation sequences, and reviews impregnated carbon variants. This technical guide is designed for process chemical engineers, cleanroom facility managers, and environmental safety officers.

 The Dual Physics of Cleanroom Air Purification

To design an effective cleanroom HVAC system, engineers must distinguish between particulate contamination and gaseous molecular contamination. These two categories of pollutants exist in entirely different physical states and require completely different physical and chemical separation technologies.

 The Physics of HEPA Particulate Filtration

High-Efficiency Particulate Air (HEPA) filters are made from dense, randomly oriented webs of borosilicate micro-glass fibers. HEPA filtration relies on four distinct physical mechanisms: 1. Interception: Captures medium-sized particles (0.1 μm to 1.0 μm) when they come within one particle radius of a fiber. 2. Inertial Impaction: Captures large, heavy particles (≥1.0 μm) whose inertia forces them to collide directly with the fiber. 3. Brownian Diffusion: Captures extremely small particles (<0.1 μm) whose erratic, zig-zag motion increases their chances of hitting a fiber. 4. Electrostatic Attraction: An electrostatic charge attracts particles to the fiber surface.

Together, these mechanisms trap at least 99.97% of particles down to 0.3 μm — the Most Penetrating Particle Size (MPPS).

 The Chemistry of Activated Carbon Adsorption

Gaseous pollutants — VOCs, acid vapors, and odors — exist as individual molecules far too small (<0.001 μm) to be captured by HEPA fibers. To remove these gases, systems rely on activated carbon with an internal surface area of 1,000–1,500 m²/g: * Physical Adsorption (Physisorption): Gaseous molecules are attracted and held by Van der Waals forces in the carbon’s microporous network. * Chemical Adsorption (Chemisorption): The carbon is chemically impregnated with active reagents that chemically neutralize toxic or corrosive molecules.

 Pollutant-to-Filter Capability Matrix

 Correct Combination Sequence: Pre-Filter → Activated Carbon → HEPA Filter

Stage 1: Particulate Pre-Filter (G4/F8) — Must always be placed upstream of activated carbon. Without pre-filtration, fine dust particles clog the carbon’s micropores (“blinding”), rendering the expensive carbon media ineffective.

Stage 2: Activated Carbon Bed — Captures gaseous molecular pollutants and VOCs mid-stream. Air flows through the carbon bed, which can release tiny carbon fines.

Stage 3: Terminal HEPA/ULPA Filter (H13/H14) — Positioned downstream of the carbon bed. Captures any carbon fines released by the carbon bed, ensuring completely clean supply air.

 Sector-Specific Air Purification Layouts

Semiconductor Cleanrooms (AMC Control) Layout: G4 Pre-Filter → KOH-Impregnated Carbon → Phosphoric Acid-Impregnated Carbon → F9 V-Bank → Terminal ULPA FFU Goal: Controls Airborne Molecular Contamination (AMC), preventing wafer haze.

Pharmaceutical & Sterile API Synthesis Layout: G4 Panel → Standard Activated Carbon → F8 Compact V-Bank → Terminal H14 HEPA Goal: Eliminates chemical solvent fumes while maintaining a sterile environment.

High-Containment Vivariums (Animal Lab Exhaust) Layout: G4 Panel → Standard Activated Carbon → Terminal H14 HEPA Exhaust Goal: Captures high-volume ammonia and dander odors before air is discharged outside.

 Specialized Chemical Impregnation Variants

• Potassium Permanganate (KMnO₄) Impregnation — Target: Formaldehyde, H₂S, NO, SO₂. Mechanism: Strong oxidizing agent converts toxic gases into stable, non-volatile inorganic salts.

• Potassium Hydroxide (KOH) Impregnation — Target: Acid gases including HCl, Cl₂, volatile organic acids. Mechanism: Acid-base neutralization protects sensitive copper circuits.

• Phosphoric Acid (H₃PO₄) Impregnation — Target: Ammonia, organic amines. Mechanism: Chemically neutralizes alkaline gases; highly useful in animal laboratories.

 Frequently Asked Questions

How do I determine when an activated carbon filter is fully saturated and requires replacement?

Unlike particulate filters whose replacement schedules are determined by pressure drop, activated carbon filters maintain a consistent pressure drop even when fully saturated. Carbon saturation must be monitored using chemical gas detectors, photoionization detectors (PIDs), or by tracking operational hours. Once chemical breakthrough occurs and odors or VOCs are detected downstream, the carbon must be replaced.

Can activated carbon filters be washed, steamed, or heat-regenerated on-site?

No, on-site regeneration of activated carbon filters is not practical for cleanrooms. Desorbing trapped VOCs from carbon requires industrial-scale thermal activation kilns operating at temperatures above 800°C in a controlled, oxygen-free steam atmosphere. Attempting to wash carbon filters with water will only clog the micropores with mineral deposits.

Why does high ambient relative humidity reduce the efficiency of activated carbon filters?

Water molecules are highly polar and compete with VOC molecules for adsorption sites within the carbon’s micropores. When relative humidity (RH) exceeds 60%, water vapor begins to condense inside the carbon pores, blocking target gas molecules from accessing the adsorption sites.

What is Airborne Molecular Contamination (AMC), and why is it critical in semiconductor fabrication?

AMC refers to gaseous chemical pollutants that can degrade semiconductor manufacturing processes. Unlike solid particulates, AMC molecules bypass standard HEPA filters and chemically react with silicon wafers, causing wafer haze, gate oxide degradation, and metal corrosion. Specialized chemically impregnated carbon filters are essential.

What do the Iodine Number and CTC rating mean when evaluating activated carbon?

The Iodine Number (mg/g) indicates the carbon’s micropore volume and ability to adsorb low-molecular-weight molecules — higher is better. The CTC rating measures the carbon’s capacity to adsorb larger organic solvent molecules. High-quality industrial carbon filters typically feature an Iodine Number above 1000 mg/g and a CTC rating above 60%.

Does a HEPA filter capture any odors, gaseous chemicals, or VOCs?

No. Standard glass-fiber HEPA filters cannot capture odors, gaseous chemicals, or VOCs. Gaseous molecules are smaller than 0.001 microns, allowing them to pass through the HEPA fiber matrix without interacting with the physical trapping mechanisms.

What are the risks of continuing to run a fully saturated activated carbon filter?

Once activated carbon reaches its saturation point, it can no longer adsorb new gaseous molecules. If temperatures rise or airflow patterns change, the filter can experience “desorption,” where previously trapped toxic or volatile compounds are released back into the air stream in high concentrations — a serious contamination risk.

How do you prevent carbon media from releasing fine black dust into the cleanroom?

An F8- or H13-grade particulate filter must always be installed downstream of the activated carbon bed. This downstream filter serves as a physical barrier that captures any carbon fines released by the carbon bed, ensuring the supply air remains completely free of particulates.

What is the average pressure drop penalty of adding a deep-bed chemical filter to an HVAC system?

Thin-panel carbon filters typically add 40 to 80 Pa of resistance at standard airflows. Deep-bed gas-phase canisters or heavy-duty V-bank carbon blocks can add 120 to 250 Pa of resistance, requiring careful fan selection during the HVAC design phase.

Can standard activated carbon filters remove ozone and carbon monoxide?

Activated carbon can remove ozone (O₃) through a catalytic reduction reaction that breaks the ozone molecule down into oxygen (O₂). However, standard activated carbon is highly ineffective at capturing carbon monoxide (CO) due to its low molecular weight and poor polar attraction. Removing CO requires specialized transition metal oxide catalysts such as hopcalite.

Conclusion

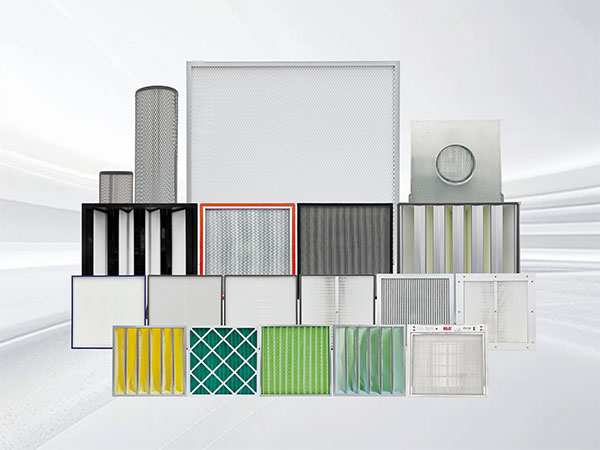

The fundamental rule is simple: HEPA removes particles, activated carbon removes gases — you cannot swap one for the other. A complete cleanroom air purification strategy must address both pollutant categories through staged, complementary filtration. For technical consultation on combined filtration systems and to source certified activated carbon filters, HEPA filters, and V-bank medium filters, visit KLC International.
