Setting up a semiconductor cleanroom from ISO 3 to ISO 6 requires precise layout design, where ceiling FFU coverage must reach 85% to 100% for ISO 3, 60% to 80% for ISO 4, and 30% to 50% for ISO 5, satisfying air change rates and laminar airflow uniformity.

This technical guide covers the engineering design and HVAC calculations necessary for semiconductor fabrication plants (fabs). It details the ISO cleanliness requirements for photolithography, etching, and packaging, explains the mathematical formula for Fan Filter Unit (FFU) ceiling coverage, and addresses the critical challenges of vibration, noise, and airflow uniformity. This guide is written for fab facility engineers, process designers, and cleanroom HVAC consultants who need to build or optimize ultra-clean microelectronics production facilities.

 Process-Specific ISO Class Cleanliness Requirements

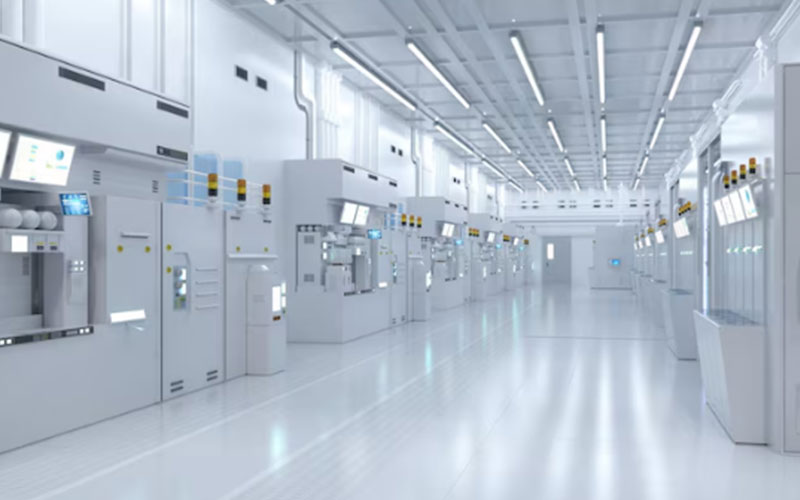

Semiconductor manufacturing is one of the most environmentally sensitive industrial processes. As transistor gate widths shrink to sub-nanometer scales, even a single sub-micron particle can bridge circuit lines on a silicon wafer, rendering an entire microchip defective. Consequently, semiconductor fabs are divided into multiple, highly controlled zones depending on the sensitivity of the specific process:

Photolithography (The “Yellow Room”): This is the heart of the fab, where circuit patterns are projected onto silicon wafers. Due to the extreme vulnerability of this step, photolithography zones must meet ISO Class 3 or ISO Class 4 standards. These zones require strict yellow lighting (to prevent premature exposure of photoresist chemicals) and absolute control over airborne molecular contamination (AMCs) and VOCs in addition to particulate control.

Etching and Chemical Vapor Deposition (CVD): The process of removing material and depositing thin chemical films on the wafer requires ISO Class 4 or ISO Class 5 cleanliness. Particulates here could block etching gases or become embedded within the molecular layers of the semiconductor.

Assembly, Packaging, and Testing (Back-End): Once the wafers are cut into individual dies, they are encapsulated in protective housings. This back-end stage is less vulnerable to sub-micron particles, and is typically housed in ISO Class 5 or ISO Class 6 cleanrooms.

 Sample Calculation: ISO Class 5 Cleanroom

 Micro-Vibration and Acoustic Control Requirements

In semiconductor manufacturing, mechanical vibration is a critical concern. Photolithography machines use high-precision lenses and lasers to etch circuits with nanometer-level tolerances. Vibrations from ceiling-mounted FFU motors can easily transmit through the ceiling grid down to the structural pillars and floor, causing image blur during wafer exposure.

To prevent micro-vibration issues, semiconductor fabs must implement several engineering safeguards: 1. Structural Isolation: The cleanroom ceiling grid must be structurally isolated from the building’s primary concrete frame. FFUs should be suspended from a secondary structural steel grid that is completely separate from the support structure of the lithography equipment. 2. Dynamic Balancing: Every FFU fan and impeller must undergo high-precision dynamic balancing. The balance grade should conform to ISO 1940 G2.5 standards, which limits residual unbalance to prevent micro-vibrations. 3. Low-Vibration Motors: Brushless EC motors should be selected. These motors run more smoothly and produce significantly less vibration than traditional AC induction motors, which suffer from electromagnetic slip and physical rotor wear.

 Airflow Uniformity and Velocity Control

In semiconductor cleanrooms, maintaining laminar (unidirectional) airflow is essential. The downward velocity must be uniform across the entire ceiling area to prevent turbulences, which can trap particles and cause them to settle on exposed silicon wafers. - Airflow Velocity Standard: For ISO Class 3 to 5, the nominal downflow velocity must be maintained at 0.45 m/s (90 fpm). - Airflow Uniformity Limit: The maximum allowable variation in downflow velocity across the ceiling is ±20% (0.36 to 0.54 m/s). Any larger variance can create localized pressure differentials, leading to recirculating eddies that keep dust particles suspended over the process equipment.

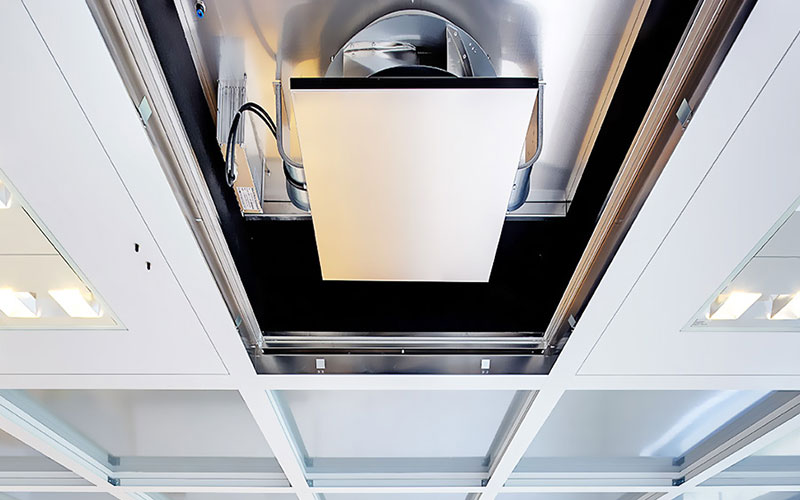

 KLC EC Motor FFU Systems for Semiconductor Fabs

KLC International manufactures high-performance Fan Filter Units specifically engineered for the demanding environments of modern semiconductor fabs. Our systems are designed with several key technical features:

• Low Noise Profile: KLC FFUs utilize aerodynamically optimized impellers and integrated acoustic chambers to maintain noise levels below 53 dB(A) at a nominal velocity of 0.45 m/s, which is critical for operator comfort in large fabs containing thousands of units.

• Precision Vibration Control: Every KLC semiconductor-grade FFU is equipped with dynamically balanced aluminum alloy impellers certified to ISO 1940 G2.5 standards, ensuring zero micro-vibrations are transmitted to delicate lithography tools.

• Ultra-Efficient EC Technology: KLC FFUs utilize high-efficiency EC motors that achieve up to 88% motor efficiency, reducing heat generation and power consumption across the fab’s HVAC system.

• RS485 Group Control System: Fabs can coordinate and monitor over 10,000 FFUs from a central control room. The system supports Modbus/RS485 protocol, allowing real-time monitoring of motor speed, pressure drops, and electrical faults, with automated speed compensation for filter loading.

 FAQ: Semiconductor Cleanroom Design

Why is FFU coverage of 85% to 100% required for ISO Class 3 cleanrooms?

An ISO Class 3 cleanroom requires near-complete FFU coverage to maintain strict, vertical unidirectional laminar airflow. At 85% to 100% coverage, the ceiling becomes a continuous membrane of ULPA filters, which ensures that air moves downward in a uniform piston-like manner. This constant downward flow sweeps any particles away from sensitive lithography areas instantly, preventing them from drifting laterally.

What is the difference between H14 HEPA and U15 ULPA filters in semiconductor fabs?

An H14 HEPA filter has an efficiency of ≥99.995% for particles of 0.3 microns. A U15 ULPA (Ultra-Low Penetration Air) filter provides an efficiency of ≥99.9995% at the Most Penetrating Particle Size (MPPS), which is typically between 0.12 and 0.17 microns. In advanced semiconductor fabs where particles as small as 0.1 microns can cause chip failure, U15 or U16 ULPA filters are required for front-end lithography and diffusion zones.

How does VOC contamination affect semiconductor wafers, and how is it controlled?

Volatile Organic Compounds (VOCs) and Airborne Molecular Contaminants (AMCs) can chemically react with silicon wafers or condense onto optical lenses in lithography tools, causing haze and defects. To control this, semiconductor-grade FFUs are often equipped with a dual-stage filtration system: an active carbon or chemical dry-scrubbing filter layer upstream of the ULPA filter to capture organic gases, acids, and bases.

What is the ideal humidity level in a semiconductor cleanroom and why?

The standard humidity target is 45% RH ± 5%. If the humidity falls below 40% RH, static electricity can build up, causing electrostatic discharge (ESD) that can destroy microchip circuits or attract dust particles to the wafers. If humidity exceeds 50% RH, water vapor can condense onto chemical photoresists, causing adhesion failures and promoting the corrosion of metal circuit layers.

How do engineers balance the airflow in a fab cleanroom containing thousands of FFU?

Manually balancing thousands of individual units is impossible. Engineers use digital group control systems connected to EC motor FFUs. The control system communicates via RS485 or Ethernet, allowing technicians to enter the target air velocity for different zones. The system then automatically adjusts each FFU’s speed and monitors pressure sensors to maintain uniform, balanced airflow across the entire fab.

What is the role of the raised access floor in semiconductor cleanrooms?

A raised access floor with perforated tiles is crucial for maintaining laminar airflow. The downward airflow from the ceiling-mounted FFUs passes through these perforated tiles into the sub-floor plenum, where it is drawn back up through side-wall return shafts to the ceiling plenum. This prevents the air from hitting a solid floor and creating turbulent recirculations that would trap particles in the working zone.

Why are brushless EC motors preferred over AC motors in semiconductor cleanrooms?

EC motors use electronic commutation instead of physical brushes, eliminating mechanical wear and carbon dust generation. They also run much cooler, which reduces the thermal load on the cleanroom’s cooling systems, and they can be modulated with extreme precision from 0% to 100% speed, allowing the group control system to maintain exact airflow velocities.

How do KLC FFUs minimize structural vibration?

KLC FFUs utilize a combination of dynamically balanced impellers, lightweight aluminum fan housings, and internal rubber vibration isolators that decouple the motor assembly from the FFU casing. This ensures that any residual micro-vibrations generated by the motor are absorbed within the unit, preventing them from being transmitted to the ceiling grid or cleanroom walls.

Conclusion and Recommendation

Designing a semiconductor cleanroom requires a precise balance of high-efficiency filtration, uniform airflow, and rigorous vibration control. To ensure your fab meets strict ISO 3 to ISO 6 standards without compromising process yields, work with a manufacturer that can provide high-efficiency EC motor FFUs with integrated group control systems.

For high-performance, low-vibration, and energy-efficient semiconductor cleanroom equipment, explore the complete product range from KLC International. Visit KLC International to review technical specifications, download FFU CAD drawings, and consult with our microelectronics application engineering team.
