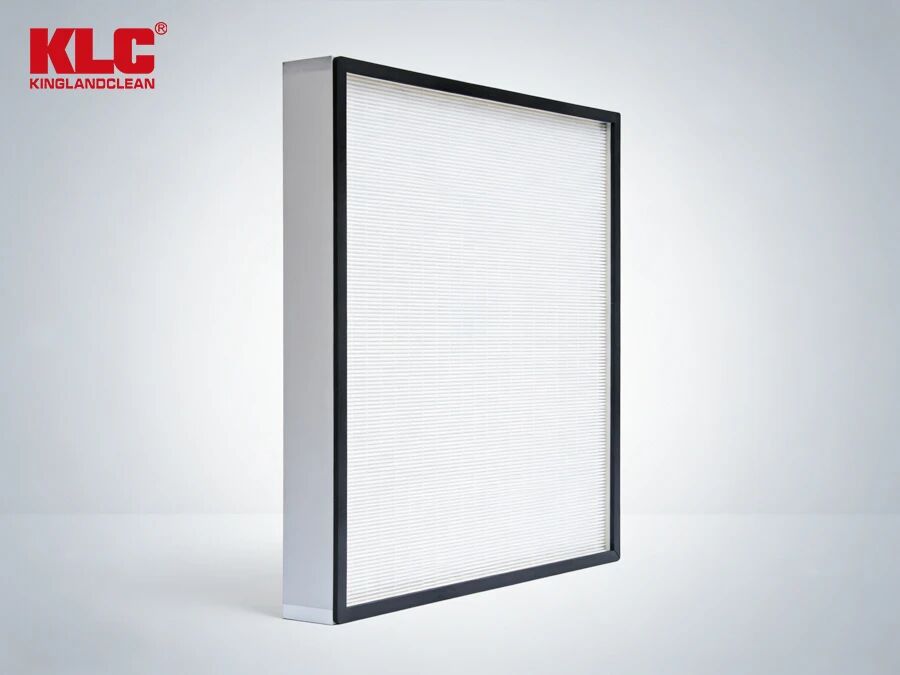

In the construction and maintenance of clean rooms, operating rooms or precision electronics workshops, high-efficiency filters (HEPA/ULPA) are undoubtedly the heart of existence. They are expensive, often thousands or even tens of thousands of yuan a piece, and are the last line of defense to ensure environmental cleanliness. However, many managers often only focus on the installation and replacement of filters, but ignore their state before "work" - storage.

Randomly stacking expensive high-efficiency filters in the corners of damp, cold warehouses is tantamount to a "death sentence" before they are put into use. This will not only lead to moisture and mold in the filter media and aging of seals, but may also cause leaks after installation, causing huge economic losses and safety hazards. Today, we're going to talk about two of the deadliest and most overlooked details of HEPA storage: moisture-proof packaging and vertical placement.

I. Moisture-proof packaging: the "golden bell" that guards the filter element

The core filter material of a HEPA filter is usually ultra-fine fiberglass paper, which is extremely hygroscopic. Once damp, not only will the filtration efficiency plummet, but what is even more frightening is that it will become a breeding ground for bacteria and mold. During cleanroom operation, these mold spores will spread with the airflow, causing serious secondary pollution.

Therefore, the original packaging is the best umbrella for filters.

1. Keep the factory seal:

The vast majority of high-efficiency filters produced by regular manufacturers will be sealed and packaged in plastic bags when they leave the factory, and are equipped with moisture-proof paper or cardboard corner guards. As long as the filter is not installed, this layer of packaging must not be removed. This layer of packaging is not only dustproof, but also a barrier to moisture in the air.

2. Secondary protection:

If you are in a warehouse with high humidity, the original packaging alone may not be enough. It is recommended to cover the original packaging with a thick PE plastic bag and put an appropriate amount of color-changing silicone desiccant.

3. Inspection of damage:

During the handling or inspection process, if the outer packaging is found to be damaged, the inside of the filter must be checked immediately. If there are signs of moisture, the performance must be re-tested and never installed directly.

Remember, don't let the filter "run naked". Any exposure to humid air is an overdraft filter life.

II. Vertical placement: avoid irreversible physical damage

In addition to moisture resistance, the posture of the filter is also a matter of life and death. In order to save space, many warehouses are accustomed to stacking filters flat like books, or leaning against the wall at will, which is extremely wrong.

The HEPA filter must be placed vertically (upright).

1. Prevent filter media deformation:

The filter paper of high-efficiency filters is very delicate and folded. If stacked flat for a long time, the filter at the bottom will be subjected to tremendous pressure, causing the filter paper to deform or even break. Once the filter paper is damaged, its filtration efficiency will be reduced to zero, and the damage is irreparable.

2. Avoid damage to the sealant:

The filter border is often coated with a sealant (such as polyurethane or silicone). Long-term flat pressure will cause plastic deformation of the sealant, and it cannot fit closely with the ceiling or equipment during installation, resulting in gaps and air leakage.

3. Stacking Height Limitations:

Even when placed vertically, stacking cannot be done indefinitely. Generally, the stacking height should not exceed 2 meters (or follow the indications on the packaging box). Excessive stacking not only increases the risk of tipping over, but the filters at the bottom are also prone to frame damage due to excessive pressure.

The correct practice is: place the filters upright on pallets or shelves, following the direction indicated by the “up” arrows on the packaging box. If conditions allow, it is best to use dedicated racks to prevent direct contact with the ground, further isolating the filters from ground moisture.

III. Environmental Control and “First In, First Out”

In addition to the above points, the choice of storage environment is also crucial.

• Temperature and humidity control:

The ideal storage temperature should be between 0℃ and 40℃, and the relative humidity should preferably be kept below 60%. Avoid storing filters in places with drastic temperature changes to prevent condensation.

• Keep away from sources of contamination:

Warehouses should be kept clean, away from acidic or alkaline chemicals, dust sources, and corrosive gases.

• First In, First Out principle:

High-efficiency filters also have a “shelf life.” It is generally recommended that storage should not exceed one year (for filters with adhesive seals, it is even suggested not to exceed two months). Therefore, when using the filters, it is essential to follow the “first in, first out” principle, giving priority to products with earlier storage dates to avoid inventory accumulation leading to expiration and ineffectiveness.

High-efficiency filters are sophisticated industrial products, not simple construction materials. By handling them with extra care, you ensure greater security for your project. Do not let your high-value filters deteriorate prematurely in a damp, dark warehouse. Use proper moisture-proof packaging, maintain vertical placement, and ensure that each filter can operate at its optimal condition to protect clean spaces.
